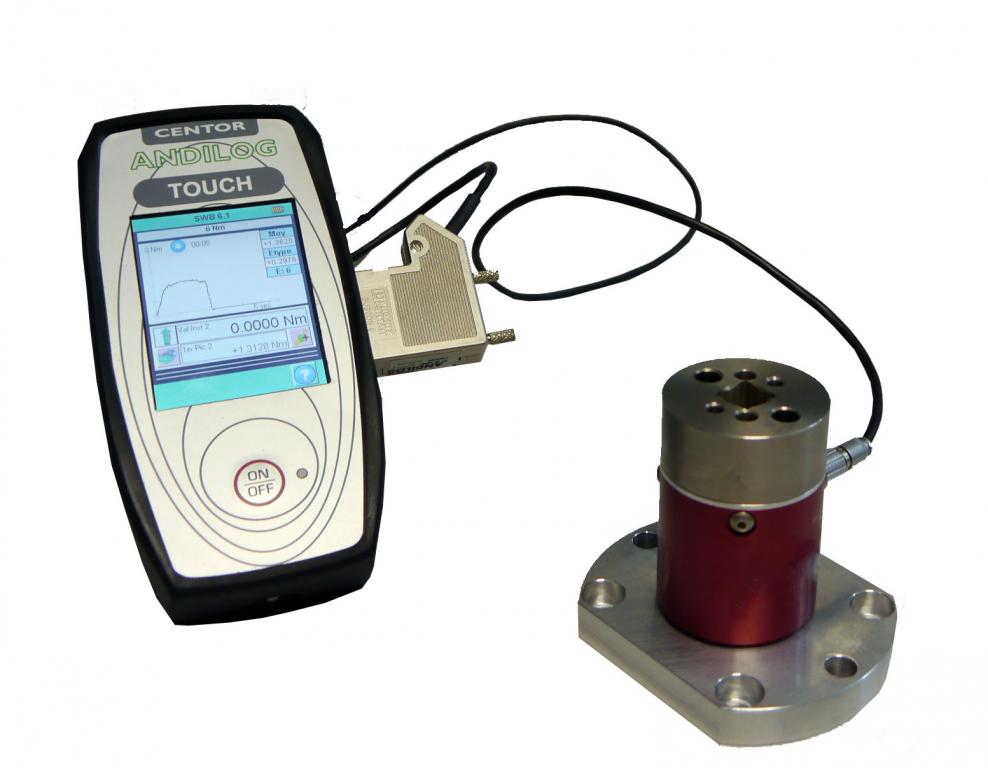

Centormeter CT, Portable torque calibration bench

Centormeter CT torque calibration
Highlights:

  • 5 to 5000in.lb capacity range
  • Automatic recognition of additional torque sensors
  • Hand held display
  • Live graphing
  • Color Touchscreen
  • Data transfer software included

Code: CENTORMETER CT

Capacity:

Documentation: specifications sheet

Printer Friendly Tell a Friend

Our Centormeter CT serie, a portable torque analyzer, allows you to calibrate and check all of your measuring tools: torque wrenches, torque screwdriver, electric screwdriver, air screwdriver, torque gauges, etc. Safely ensures periodically your tool’s integrity and reliability in your facility, by controlling their torques with a torque analyzer.

The torque analyzer product line, Centormeter allows you to maintain and ensure the proper torque of your operating

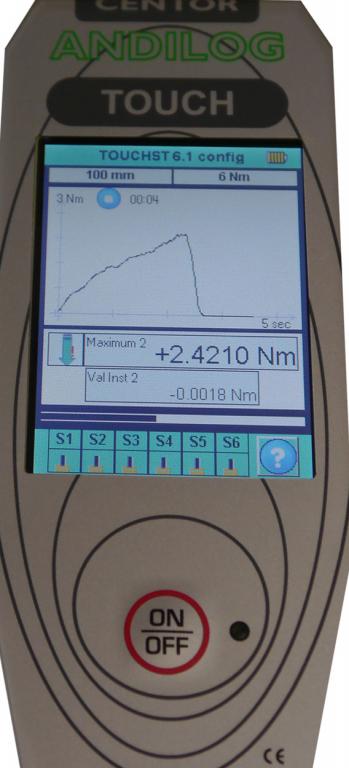

torque equipments: hand and power driven tools up to 3000rpm (requires an optional run dow adaptater). The Centormeter displays in real time and simultaneously the current torque applied (track), the peak torque and first peak (for all your click wrenches). Thanks to its friendly color touch screen, display your results and plot the graph torque versus time simultaneously and in real time, you don’t need a PC to graph your readings.

The portable Centometer CT serie includes the SPIP technologies, for an instant recognition of additional torque sensors.

Calibrate and audit all your torque tools without compromise.

Operating Principle:

Andilog’s Centormeter Easy torque analyzer is dedicated to measure the applied torque by your torque tools. Simple to operate: The torque tool is inserted into the sensor’s square output. The measurement is displayed in real time.

Three operating modes are available:

  • Track for all torque wrenches or dial tools, type which displays live value, torque as it is being applied to the sensor.
  • Peak which records and displays the highest values experienced by the torque sensors. Peak mode is used for all dial torque wrench testing, preset torque tools and power too
  • First Peack for click type torque tools, which records the first peak of torque experienced by the sensor.



Key Features:

  • Live graphing torque vs time
  • SPIP technologies: automatic recognition of sensors
  • Data acquisition software included via USB output
  • Operating mode: track, peak, first peak
  • Programmable thresholds
  • Internal memory of 2000 values with statistics
  • Compatible with our rotary drive torque sensor (torque and angle)

CENTORMETER TOUCH STAR display:

  • Display Curve and 2 lines,
  • Touch color screen
  • Auto OFF features

Supplied with:

  • Certificate of calibration, power cord, user manual
  • Data transfer software: RSIC Lab

Available options:

  • Run down adapter for powered torque tools: RDA
  • Save your data directly on a USB stick: DATASTICK
  • Wireless freedom through a Bluetooth connection: CB BT



Shipping: Order online only within USA and Canada, contact us or our distributors for other countries
