Drive Rotary torque gauge CENTOR TOUCH DUAL with encoder

Drive Rotary torque gauge Centor Touch Dual with encoder
Highlights:
  • Measure torque, rotational displacement and speed
  • Large range of available capacities
  • Live graphing
Series code:: CNR DTT TRD

Printer Friendly Tell a Friend

Measures the Torque and Speed on rotating shaft thanks to the CENTOR TOUCH DUAL TRD. ANDILOG proposes a complete measuring solution based on a rotary drive torque sensor, equipped with an internal rotational encoder, and its advanced Centor Touch Dual gauge. This unique model replies to many rotating processes that required torque and speed auditing, feedback control, monitoring and analysis.

The rotary drive torque Centor Touch Dual has the ability to rotate and measure torque applied to rotating drives applications. Therefore it is the ideal solution for systems designed for continuous rotation.

Now equipped with an internal encoders, it is the perfect model designed to measure also rotational displacement, angle or rotations per minute (RPM).

With its large touch screen and ability to read two channels simultaneously, the Centor Touch Dual displays both values: torque and rotation displacement, and for the most demanding engineers it graphs in real time the curve: torque versus rotational displacement. By offering test calculation capabilities, the Centor Touch Dual allows users the ability to measure the speed.

The rotary torque Centor Touch dual gauge is a unique solutions for applications involving assessment on knobs, threaded fasteners tightening, performance verification. Build with a robust design, it can be integrated into various application environments and fields.

The drive rotary torque gauge Centor Touch Dual model with build-in encoder is the perfect solution for all your low and medium drive applications.

Main features:

  • Live graphing: Torque vs Time, Torque vs Rotational displacement
  • USB, RS232 outputs
  • Compatible with the optional Bluetooth dongle or USB stick recorder DATASTICK
  • Torque capacity available from 6 to 250Nm
  • For shaft rotating up to 5,000rpm

Available measurements:

  • Torque: raw data, maximum, minium, average, First Peak, Torque value at Rotary displacement value...
  • Rotary displacement (angle, nb of revolution)
  • Speed (rev/min, rev/sec)

Supplied with :

Working principle:

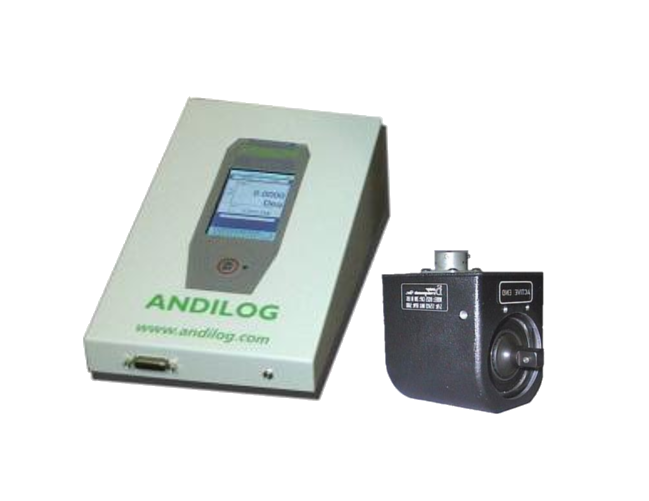

  • The rotary drive torque sensor includes an internal encoder, to measure the rotational displacement, and it's linked to the graphical Torque Gauge CENTOR TOUCH DUAL, which is able to collect measurements from two channels.
  • The rotary torque sensor is mounted in line on the rotating shaft.
  • The gauge displays the curve, the torque and rpm values

Typical applications: in-line applications on rotating shafts, motor drive shaft
