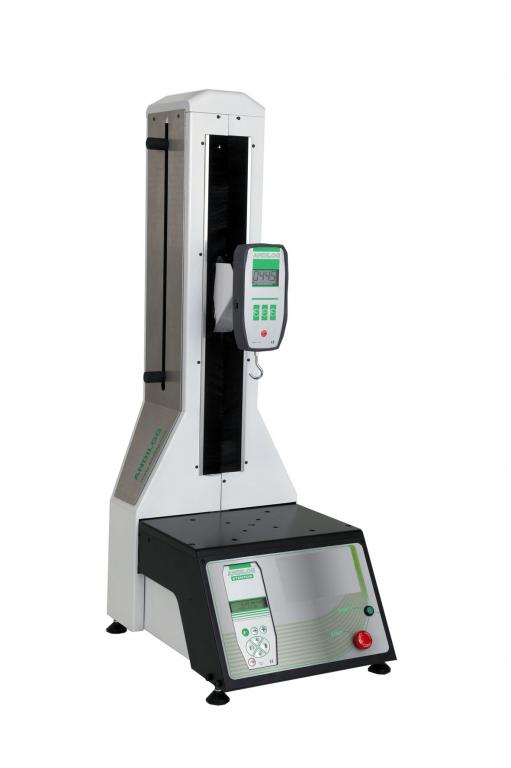

Stentor First - Motorized test stand for force gauge

The Stentor First is a motorized test stand designed to carry out force measurement for all applications in which the displacement speed is specified by a standard, together with all applications in which the speed can have an influence on the measurement itself. The base supports a large worktable with easy access. Furthermore, fixing holes are provided to enable easy assembly of fixing tools.

The force gauge is fitted on the mobile crosshead, actuated by a ball screw system. Displacement is carried out using a linear guidance system inside the test stand body. A system of adjustable mechanical or digital limit switches can be used to limit the crosshead travel to suit test requirements and protect the tools. Each limit switch has 2 functions: stop or reversal of direction for cyclical tests.

The control console can be used to start the test, control fast upward and downward movement, and set the test parameters:
– speed setting between 10 and 300 mm/min, upwards and downwards,
– stopping or reversal of movement when the crosshead reaches the limit switches,
– stopping or reversal of movement based on a displacement value (digital limit switches),
– stopping or reversal of movement based on the force value (optional),
– number of working cycles.

The speed and displacement values are shown continuously on the console display. The Stentor First is available in 1000N version with a 200mm travel and un a 2000N version with a travel of 300mm.

Key Features: Travel Measurement / travel Limit / Auto return / Cycling
