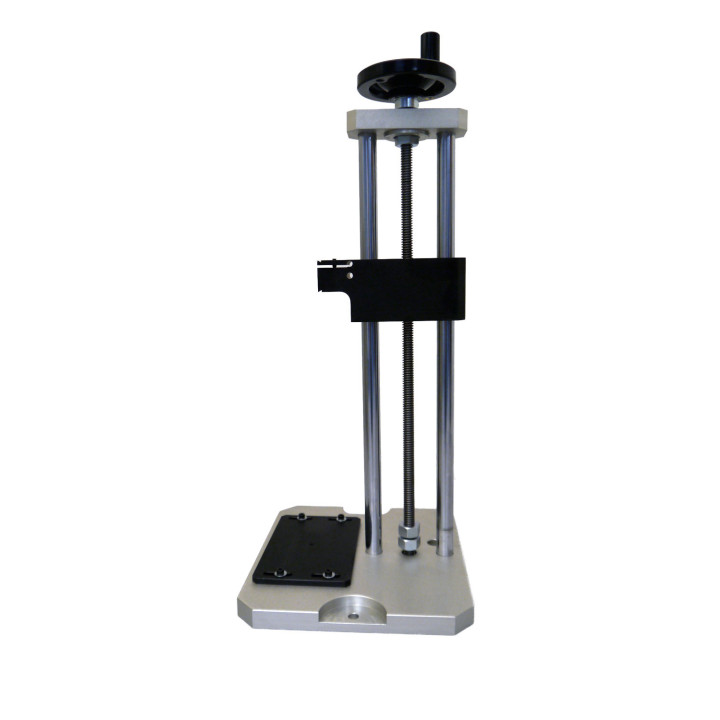

The manual test stand BAT1000 model, is designed for simple compression and tensile force tests up to 200 lbf. Hand-operated, it's suitable for a broad range of force measurement applications: push, pull, peel, flexure and much more.
- Movement: 0.1in lead screw per crank rotation for precise and consistent movement
- Reduced backlash: Guidance via hardened bearings on shaft for reduced backlash during force measurement

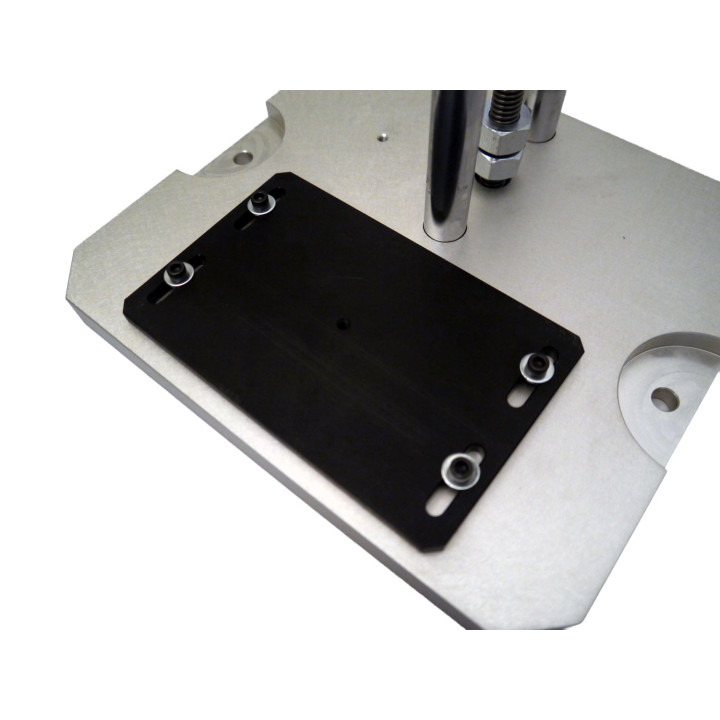

- Mechanical interface: Accessory support plate with M5 thread adjustable in position and low stops to prevent overloads
- Displacement measurement: The BAT1000 can be equipped with an optional displacement measurement ruler (12in travel, resolution 0.001in)
Please feel free to contact us if you can't find what you are looking for or want to submit a special request.
Why Choose the BAT1000?
The BAT1000 combines accuracy, durability and ease of use, making it the perfect choice for:
- Minimal deformation thanks to the double steel column system.
- Adjustable jaw mounting position to ensure proper sample alignment.
- Fine pitch screw drive (0.1in per revolution) allows for precise and very slow positioning during force measurements.
Key features
To ensure the dynamometer is correctly positioned in relation to the part being tested, the BAT1000 manual frame is an easy-to-use solution. It can be used for tensile or compression testing requiring forces of up to 200 lbf.
The base consists of a flat platform that holds the sample to be tested and on which two columns are mounted to support the movable slide: the dynamometer is mounted on the slide without any play. The stroke is 12 in.
The ram is moved manually using a crank located at the top and a worm gear system. At the end of the stroke (lower part), the movement of the ram can be limited by an adjustable stop.
- Works in tension and compression
- Hand wheel operated for fine and precise testing
- Precision Acme threaded rod for smooth precision motion (0.1 in per revolution)
- Adjustable fixture mounting plate to ensure proper alignment of sample and force gauge
- Bottom mechanical travel stop
- 12 in travel
- Optional digital ruler (12 in travel, 0.001 in resolution)
Recommended operating conditions:
- Operating temperature: 33 to 90 °F
- Storage temperature: –4 to 113°F
- Relative humidity: 5–95% (non-condensing)
- Maximum altitude: 1,800 mi
-
Brand
-
ReferenceBAT1000
- Travel12 in
- Capacity200 lbf
