Wireless load cell

$995.00
Ref: WLC SLC
  • WLC SLC
  • Wireless load cell WLC SLC

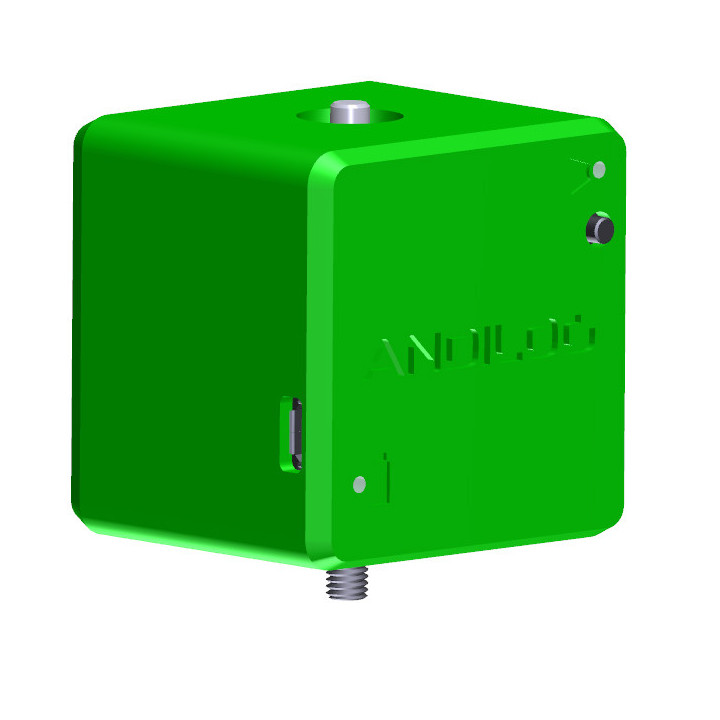

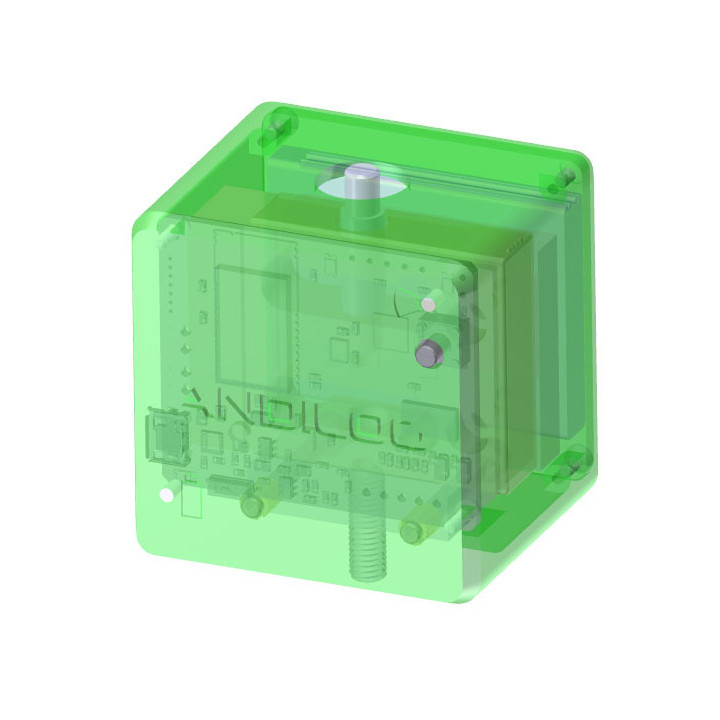

The WLC SLC is the first wireless load cell of the Andilog range. This small load cell permits to measure force ain tnesion and compression. Equipped with Bluetooth technology, the sensor is compatible with all Windows 11 computers or the Centor Wireless II displays of Andilog.

Accuracy and reliability
  • Accuracy ±0.1% Full Scale
  • 1,000 Hz sampling rate for responsive results
  • Wireless range up to 65 ft
Accessories included
  • 2 x M5 male thread
  • Battery with 10 hours autonomy
  • USB power supply

Please feel free to contact us if you can't find what you are looking for or want to submit a special request.

Information & quote request
close

Information & quote request




* = Required


Why Choose a wireless load cell?

You would choose the WLC SLC because it offers:

  • high accuracy (0.1% FS)
  • fast sampling (1,000Hz)
  • No cable between load cell and display or computer
  • Compact design

It’s especially well-suited to quality control in production environments, R&D testing, and applications where reliable force measurement is critical.

Key features

WLC TH
Main features
  • Measure in tension and compression up to 200 lbf
  • Precision of 0,1% Full Scale
  • Sampling rate of 1,000 Hz
  • Operating life: 10 hours of measurement
  • Wireless technology: Bluetooth
  • Signal range: up to 65 ft in open field
  • Charging time: 2 hours
  • Mechanical protection against overloads up to 150 % of the sensor´s capacity
Versatility in Measurement
  • It supports both tension and compression testing, making it useful for a wide variety of tests.
  • Available in a broad range of capacities: from 2 lbf up to 200 lbf
  • Multiple unit options: lb, N, kN, kg, oz, daN, etc
WLC TH with CaligraphI
Compatibility and use

The WLC SLC sensors are compatible with:

  • The Centor Wireless II gauge can read our wireless sensors.
  • Computers equipped with the software Caligraph. Indeed, the WLC TH sensors can be connected directly to a computer equipped with Bluetooth. The visualization of the measuring data is done directly on the software Caligraph and no display or gauge is needed.

Recommended operating conditions:

  • Operating temperature: 33 to 90 °F
  • Storage temperature: –4 to 113°F
  • Relative humidity: 5–95% (non-condensing)
  • Maximum altitude: 1,800 mi
  • Reference
    WLC SLC
    • Resolution
      1/10,000 of Full Scale
    • Accuracy
      ±0.1% of Full Scale
    • Available units
      lb, N, kN, kg, Oz, daN, g
    • Sensor sampling rate
      1,000 Hz
    • Autonomy
      10 hours
    • Communication
      Bluetooth
  • Brand
