Vise grip 500 lbf

$945.00
Ref: TH240k-BG
  • TH240k

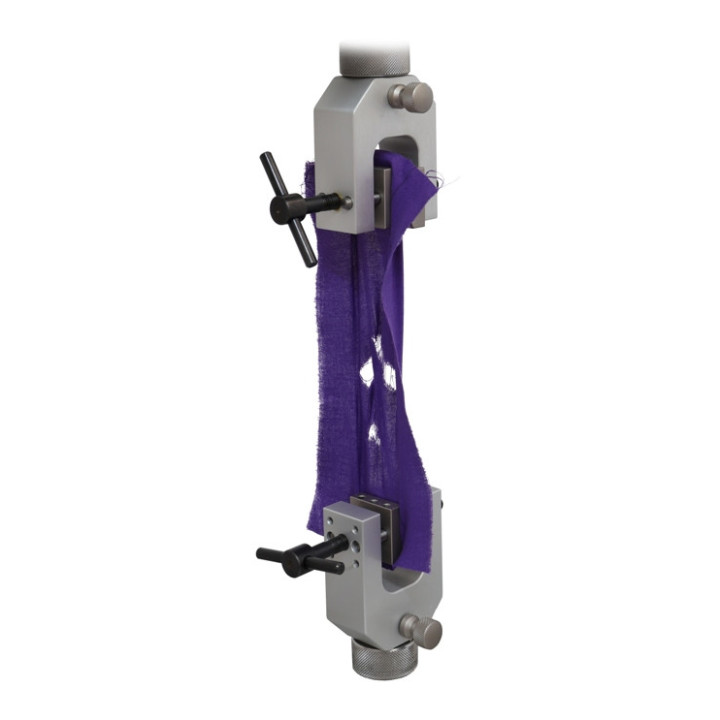

  • Th240k fabric testing
  • Pyramid jaw
  • Wave jaw
  • Rubber jaw
  • Diamond jaw
  • Type of jaws

Flat jaws with screw clamping for tests up to 500 lbf. Pyramid-shaped jaws, ideal for testing relatively hard or rigid materials (plastic, metal, etc.). Other types of jaws are available upon request (wave, rubber, V-shaped, etc.).

Ideal for tensile testing
  • Simple and effective method to hold specimens
  • Dual acting design, works for asymmetrical samples
  • Jaws articulate and provide self-alignment and cause a self-tightening effect
Features
  • Capacity: 500 lbf
  • Opening: up to 0.4 in

Please feel free to contact us if you can't find what you are looking for or want to submit a special request.

Information & quote request
close

Information & quote request




* = Required


Key features

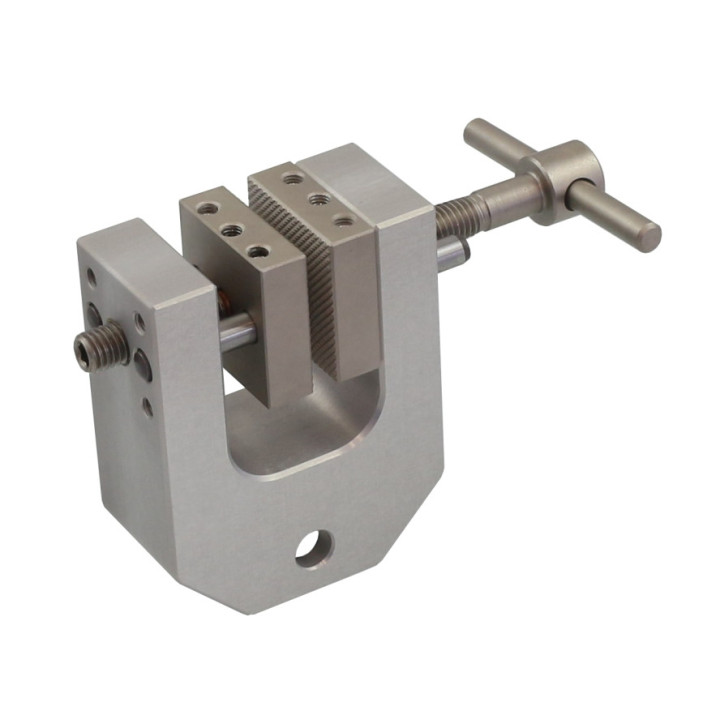

Vise grip TH240k
Ideal for testing relatively hard or rigid materials (plastic, metal, fabric, etc.)

Flat jaws with screw clamping for tests up to 500 lbf. Pyramid-shaped jaws, ideal for testing relatively hard or rigid materials (plastic, metal, etc.). Other types of jaws are available upon request (wave, rubber, V-shaped, etc.).

Both jaws can be moved to adjust the alignment between the upper and lower jaws. One of the jaws is equipped with a crank handle for clamping the specimen. These jaws have a wide opening, allowing tensile tests to be performed on very thick specimens.

  • Maximum capacity: 500 lbf
  • Opening: 0 to 0.4 in (thickness of the sample)
  • Gripping width: 1.18 in
  • Gripping height: 1.18 in
  • Default type of jaws: pyramidal (1.2x45°)
  • Other available jaws: rubber, wave or diamond coated
  • Attachment system: 5/8 quick connector with pin
  • Body material: Anodised aluminium
  • Jaw material: Nickel-plated steel
  • Temperature range: 32  to 158 °F
  • Weight for a pair: 1.70 lb
  • Quantity: 1 pair

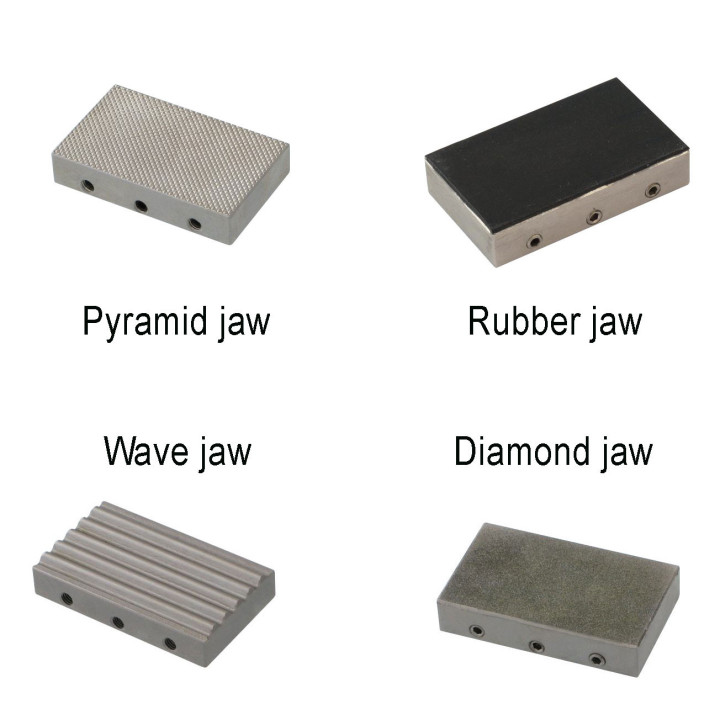

Type of jaws
Different type of jaws

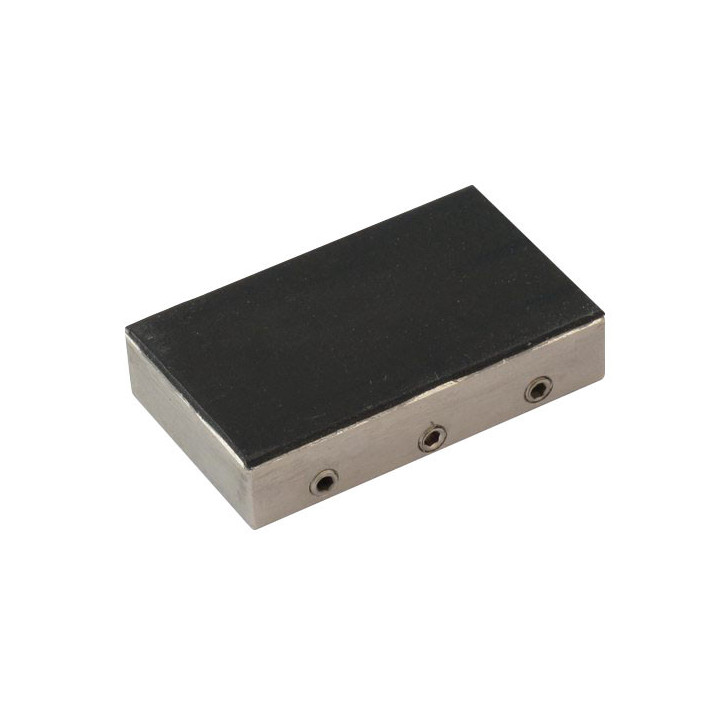

Rubber coated jaws:

  • Opening: 0 to 0.3 in (thickness of the sample)
  • Rubber thickness: 0.04 in

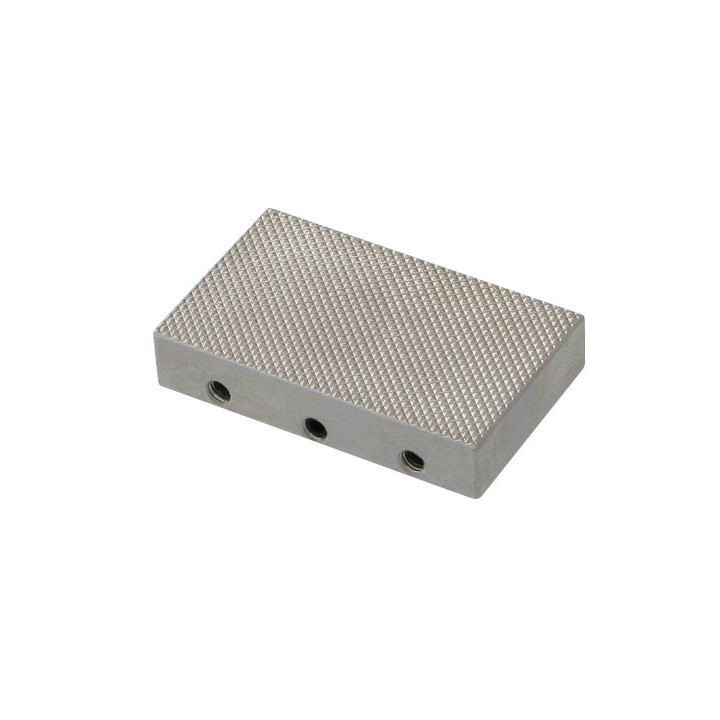

Pyramid jaws:

  • Opening: 0 to 0.4 in (thickness of the sample)
  • Pyramids: 0.05 in x 45°
  • Hardened steel 58 HRC

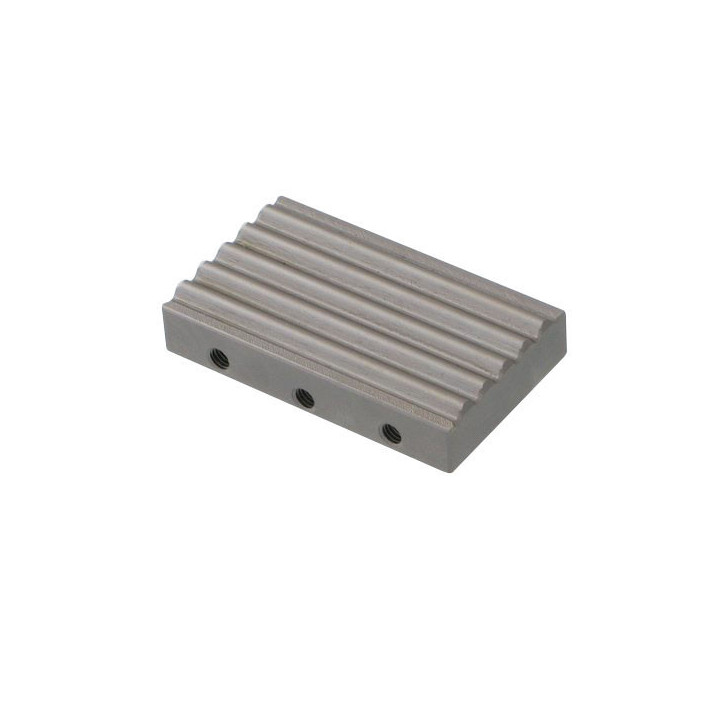

Wave jaws:

  • Opening: 0 to 0.4 in (thickness of the sample)
  • For flexible material
  • Wave 0.2 in
  • Hardened steel 58 HRC

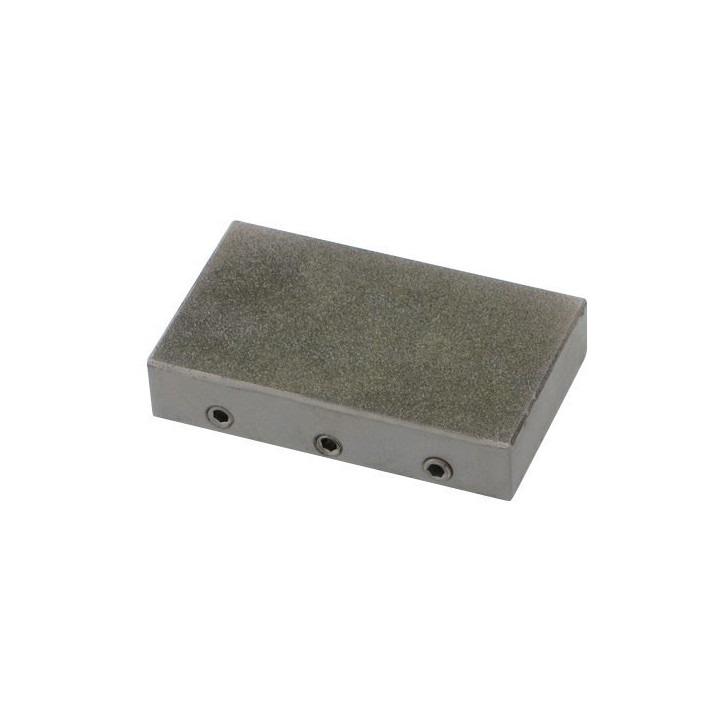

Diamond jaws:

  • Synthetic diamonds D91 (170/200 mesh)

  • Reference
    TH240k-BG
    • Capacity
      500 lbf
