Vise grip 20 lbf

$1,045.00
Ref: TH140k-BG
  • TH140k

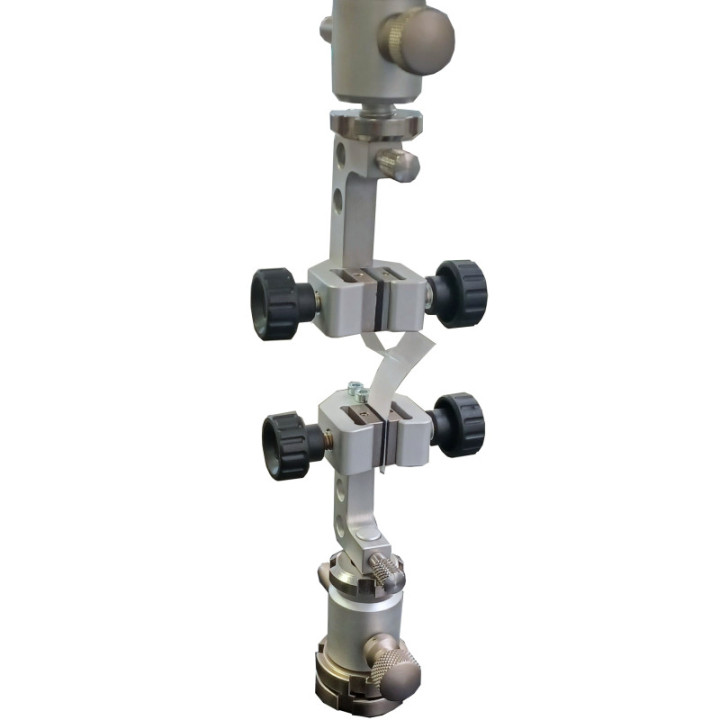

  • TH140-BG for peeling test
  • Pyramid jaw
  • Rubber jaw
  • Type of jaws

Screw clamps with rubber-coated jaws for forces up to 20 lb. Ideal for holding fragile samples requiring low forces. TH140 jaws are particularly suitable for peel tests on medical plastic materials.

Ideal for tensile testing
  • Simple and effective method to hold specimens
  • Dual acting design, works for asymmetrical samples
  • Deisgned for peel testing on plastics
Features
  • Capacity: 20 lbf
  • Opening: up to 0.3 in

Please feel free to contact us if you can't find what you are looking for or want to submit a special request.

Information & quote request
close

Information & quote request




* = Required


Key features

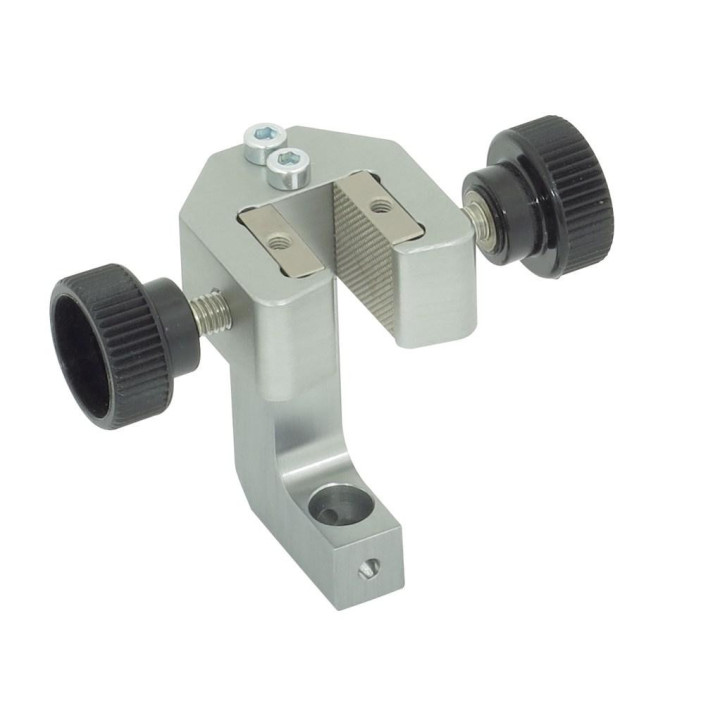

Vise grip TH140k
Ideal for peel testing on flexible material or membrane

Screw clamps with rubber-coated jaws for forces up to 20 lb. Ideal for holding fragile samples requiring low forces. TH140 jaws are particularly suitable for peel tests on medical plastic materials.

Both jaws can be moved to adjust the alignment between the upper and lower jaws.

  • Maximum capacity: 20 lbf
  • Opening: 0 to 0.25 in (thickness of the sample)
  • Gripping width: 0.6 in
  • Gripping height: 0.6 in
  • Default type of jaws: rubber
  • Other available jaws: pyramid
  • Attachment system: 8mm quick connector with 3mm pin
  • Body material: Anodised aluminium
  • Jaw material: Nickel-plated hardened steel
  • Temperature range: 32  to 158 °F
  • Weight for a pair: 0.25 lb
  • Quantity: 1 pair

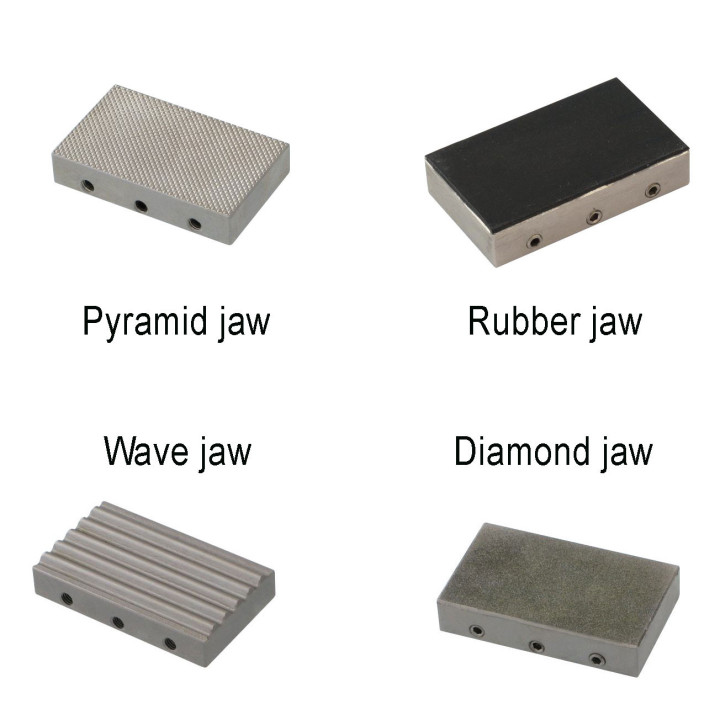

Type of jaws
Different type of jaws

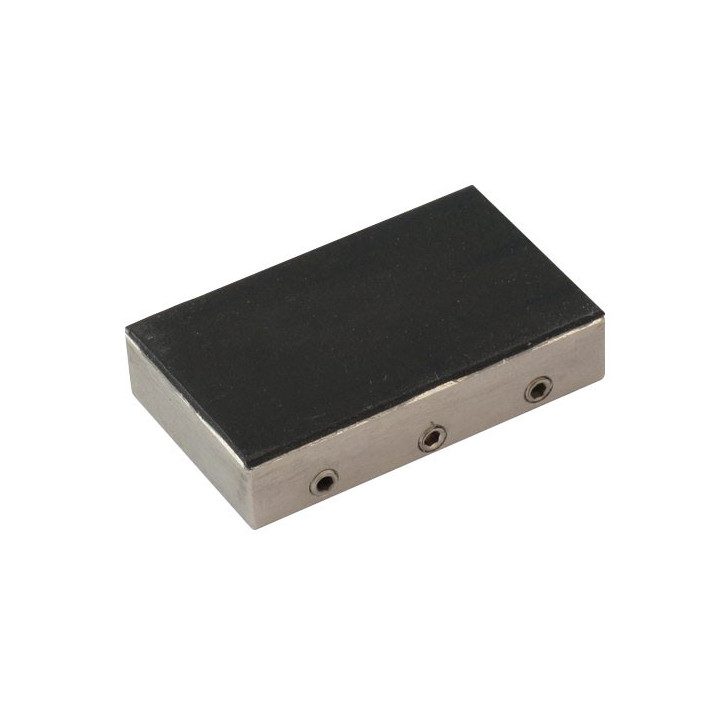

Rubber coated jaws:

  • Opening: 0 to 0.25 in (thickness of the sample)
  • Rubber thickness: 0.04 in
  • Temperature range: 32  to 158 °F

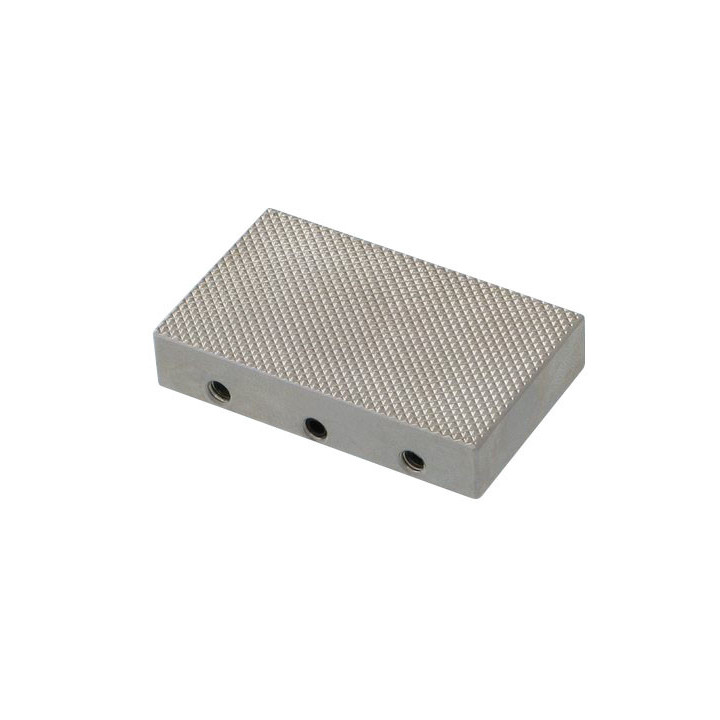

Pyramid jaws:

  • Opening: 0 to 0.3 in (thickness of the sample)
  • Pyramids: 0.05 in x 45°
  • Hardened steel 58 HRC

  • Reference
    TH140k-BG
    • Capacity
      20 lbf
