Centor Easy R II
Centor Easy R II images

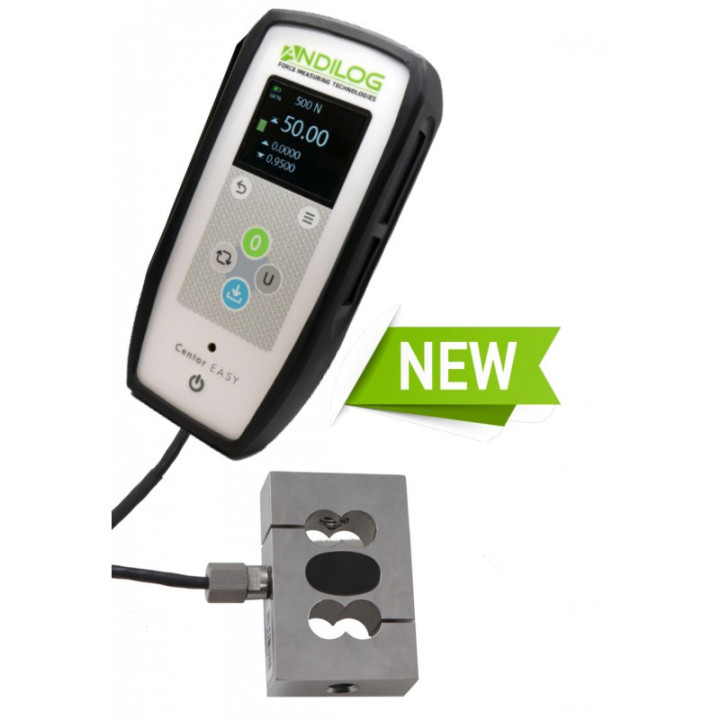

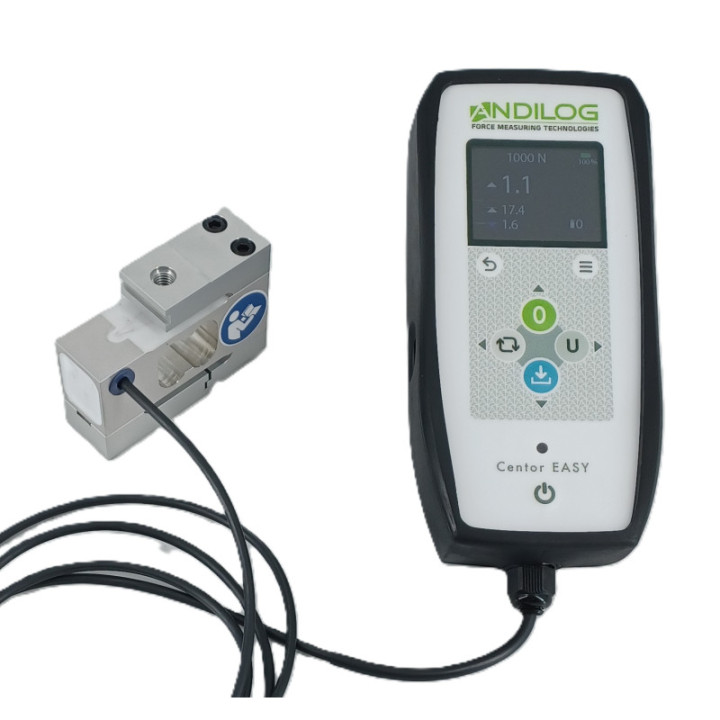

The Centor Easy R II combines accuracy, robustness and versatility. It is a reliable force gauge with a remote load cell, designed to meet the needs of demanding professionals while remaining afordable.
Accuracy and reliability
- Accuracy ±0.1% Full Scale
- 2,000 Hz sampling rate for responsive results
- Remote load cell ranges from 5 to 10,000 lbf
- USB-C connection : Access your results on your computer, without additional software, for optimized tracking and analysis.
- Inputs/Outputs: 2 inputs and 2 outputs for connecting to a PLC or a pedal
- Numerous functions: threshold settings with alerts, overload counter, memory, bar graph...

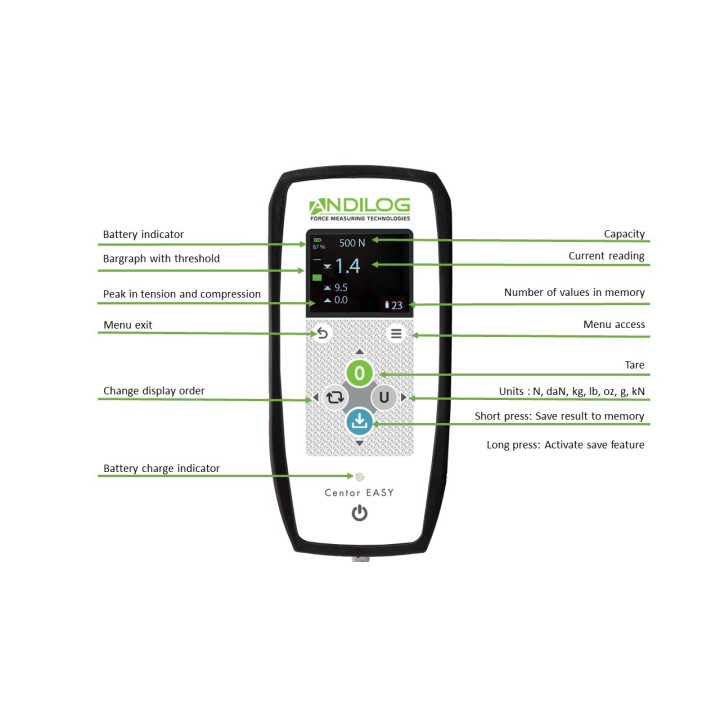

- Simple interface: Its backlit color screen for easy reading. Day/Night mode for optimal readability in all circumstances.
info
Please feel free to contact us if you can't find what you are looking for or want to submit a special request.
Close
Why Choose the Centor Easy R II?
You would choose the Centor Easy II because it offers:
- high precision
- fast sampling
- versatile measurement modes
- user-friendly interface, and good connectivity
- all in a rugged, portable form factor.
It’s especially well-suited to quality control in production environments, R&D testing, and applications where reliable force measurement is critical.
Key features
High accuracy
- Very high measurement precision. Its total measurement error is less than 0.1% of full scale.
- It has a very fine resolution: 1/10,000 of full scale.
- The high internal sampling rate (2,000 Hz) helps capture dynamic or fast events very reliably.
- It supports both tension and compression testing, making it useful for a wide variety of tests.
- Available in a broad range of capacities: from 5 lbf up to 10,000 lbf
- Multiple unit options: lb, N, kN, kg, oz, daN, etc
Connectivity
- It offers USB communication to transfer memory or to draw curve on a computer (software required)
- I/O lines: 2 digital inputs + 2 outputs, which is useful for integration with automated systems
- Color, back-lit display, making it easy to read measurements even in dim or poorly lit environments.

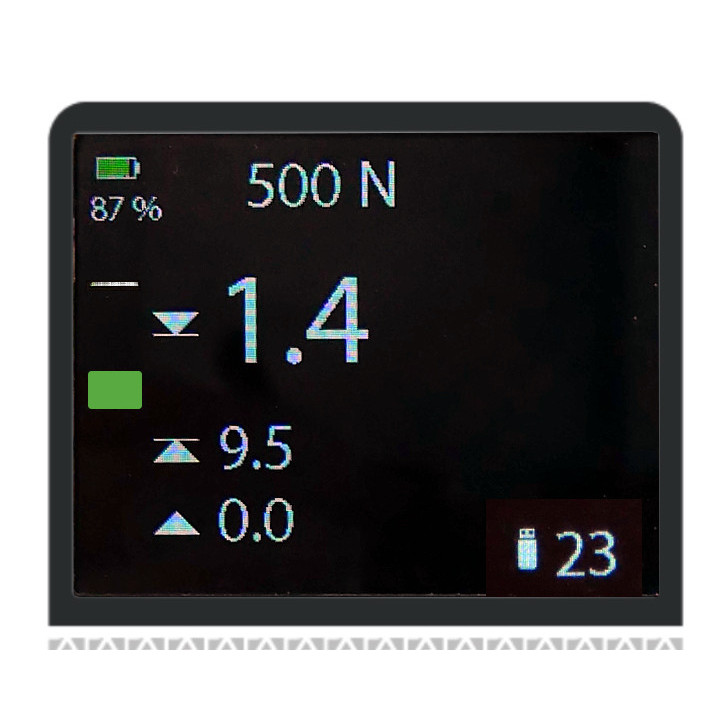

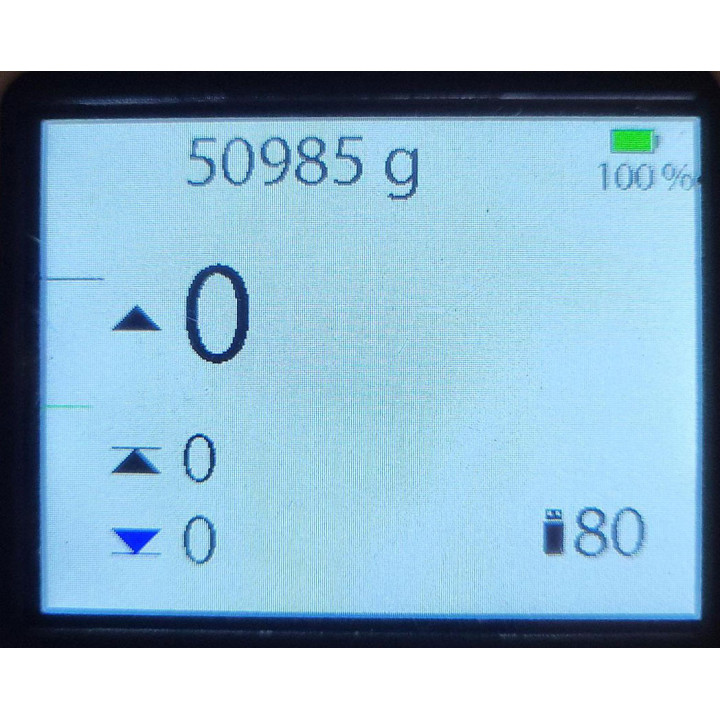

- Day/Night mode for optimal readability in all circumstances.
- The interface supports threshold (limit) setting: you can define pass/fail criteria with visual alerts
- Built-in memory: up to 500 measurements can be stored, which is useful for tracking measurement history
Robustess & Durability
- It is designed for industrial / production environments: built to withstand repeated force applications.
- Overload protection: can handle up to 200% of full scale without damage.
- Battery operation: autonomy of ~15 hours, which is quite good for portable use.
- Auto-off feature for battery conservation (adjustable between 5–15 minuts, or can be disabled).
- Overload protection function: displays a warning if the starting force exceeds 20% of the capacity.
- Maintenance screen accessible with detailed information (number of overloads, offset, factory parameters, etc.).

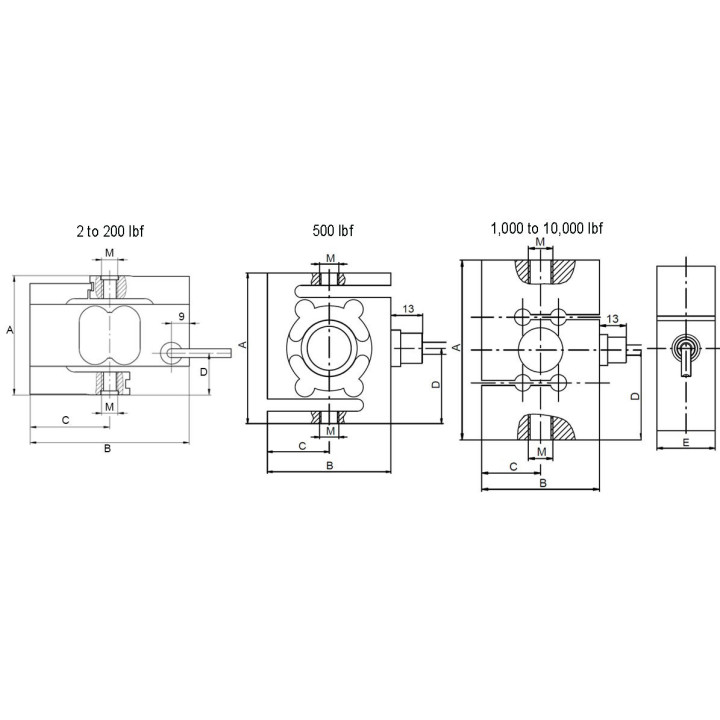

Load cell dimensions:
| Capacité | A | B | C | D | E | M |
|---|---|---|---|---|---|---|
| 5 lbf | 2.36" | 3.15" | 1.57" | 0.83" | 1" | M8 |
| 10 lbf | 2.36" | 3.15" | 1.57" | 0.83" | 1" | M8 |
| 20 lbf | 2.36" | 3.15" | 1.57" | 0.83" | 1" | M8 |
| 50 lbf | 2.36" | 3.15" | 1.57" | 0.83" | 1" | M8 |
| 100 lbf | 2.36" | 3.15" | 1.57" | 0.83" | 1" | M8 |
| 200 lbf | 2.36" | 3.15" | 1.57" | 0.83" | 1" | M8 |
| 500 lbf | 3.44" | 2.25" | 1.13" | 1.72" | 0.95" | M12 |
| 1,000 lbf | 3.44" | 2.25" | 1.13" | 1.72" | 1.22" | M12 |
| 2,000 lbf | 3.44" | 2.25" | 1.13" | 1.72" | 1.22" | M12 |
| 5,000 lbf | 3.94" | 69.8 | 1.37" | 1.97" | 1.22" | M24x2 |
| 10,000 lbf | 3.94" | 76.2 | 1.50" | 1.97" | 1.44" | M24x2 |
Recommended operating conditions:
- Operating temperature: 33 to 90 °F
- Storage temperature: –4 to 113°F
- Relative humidity: 5–95% (non-condensing)
- Maximum altitude: 1,800 mi
-
Brand
-
ReferenceCNR EAR II 1000
- Resolution1/10,000 of Full Scale
- Accuracy±0.1% of Full Scale
- Available unitslb, N, kN, kg, Oz, daN, g
- Sensor sampling rate2,000 Hz
- Autonomy15 hours
- Power supplyUSB-C, 5 V – 1 A min.
- Memory500 results
- CommunicationUSB
- Data output rateUp to 500 Hz
