STENTOR II CC - Automated Single column material testing

machine essai
  • Multi-stages tester
  • Tension and compression
  • 3 models: 1kN, 2kN, 5kN
  • Automatic recognition of load cell
  • Small tabletop footprint
  • Reliability and Traceability of your results
Series code:: STENTOR II CC
Documentation: specifications
3D: 3D

Printer Friendly Tell a Friend

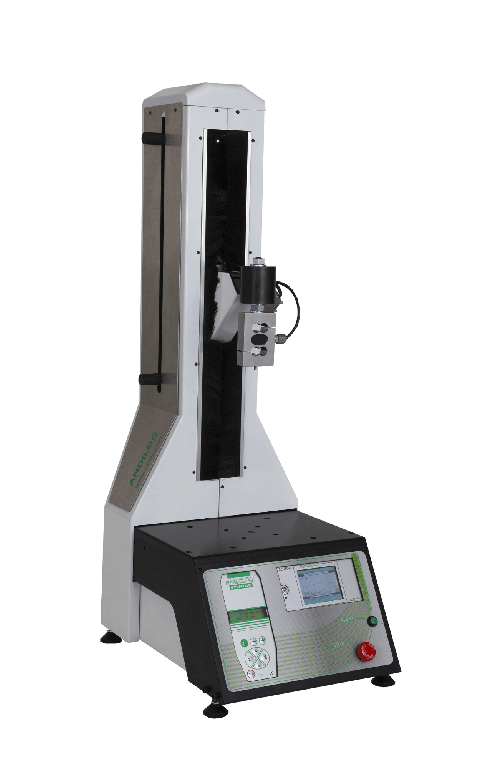

 The Stentor CC is the most advanced version of the Andilog product range. It is designed to perform complex tensile & compression material testing,  in quality control, production or laboratory environments. Computer controlled it is the perfect equipment for your multi-stages tests and it guarantee reliability & traceability of your all test results very easily.

The Stentor CC is available in two sizes: 200mm or 300mm travel. It is equipped with a high precision force sensor to ensure performance in terms of quality and repeatability of measurements. Thanks to its automatic recognition of the force sensor, adjust the force range to your needs.

The displacement of the sensor is carried by a movable slide-guided rail and a low-friction precision  preload ball screw to guarantee a minimum thurs.

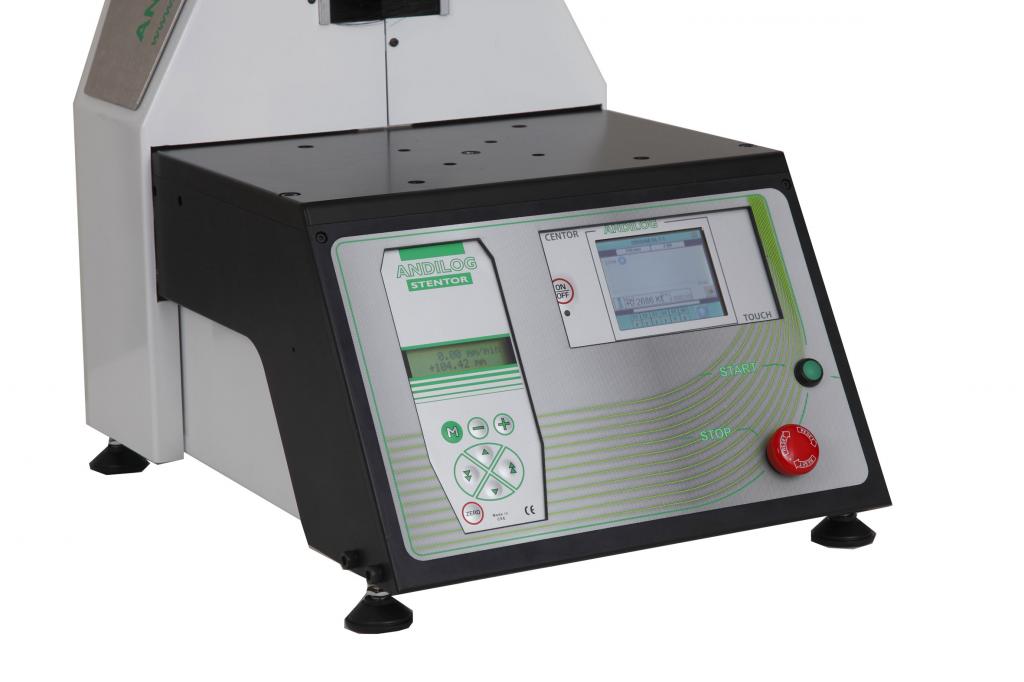

The table frame is provided with threaded holes to mount tools and jaws for holding the test samples. The work table can accept sample size up to a diameter of 200 mm.

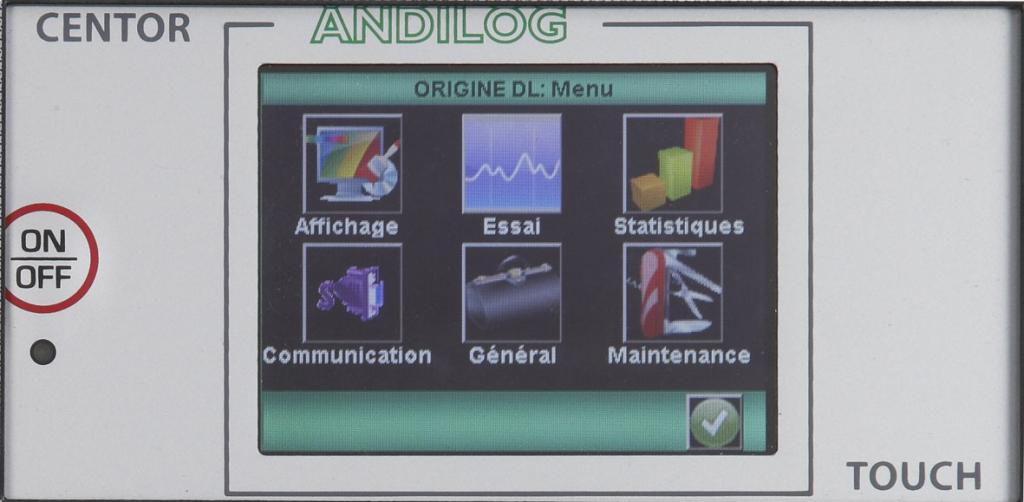

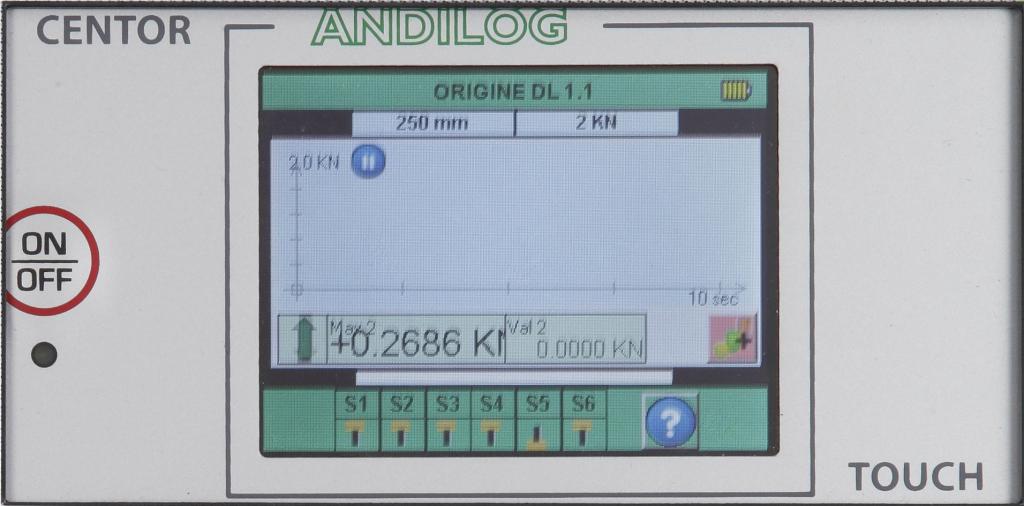

intuitive graphic interface:
Interface graphique intuitiveThe Stentor CC has a built in intuitive control console with color touch screen. This console allows for simple tests when the machine is not connected to a computer. In particular, it is very convenient in the phases of development tests, approach or a pre-study. This display incorporates the latest technology to measure strength with high-end performance: high sampling frequency, USB output, input / output (TTL connection to a PLC) ...


Logiciel de pilotage CalifortMaterial testing software Califort
The Stentor CC is controlled from your computer by the Califort Software. It is a powerful and easy to use materials testing software allowing reliable and repeatable results. Links with your test stand, CALIFOR enables you to:

  • Automatic test control with cimplexe multi-stages
  • Autamotic calculations
  • Curve acquisition: force/displacement
  • Set-up and Save multiple test configurations
  • Report edition and detailed records of your tests

Inclued :

  • The Stentor CC
  • A force gauge (8 capacities available from 10N to 2000N)
  • Califort software
  • Communication cables (2 USB ports)
  • Power cable (110V and 220V)
  • Manual

The computer for the control is not provided.

Minimum computer configuration:

  • Windows 7
  • 32 bits or 64bits processor from 1Ghz
  • RAM 2Go
  • 1024 x 768 screen
  •  2 USB ports
  • CD/DVD player
